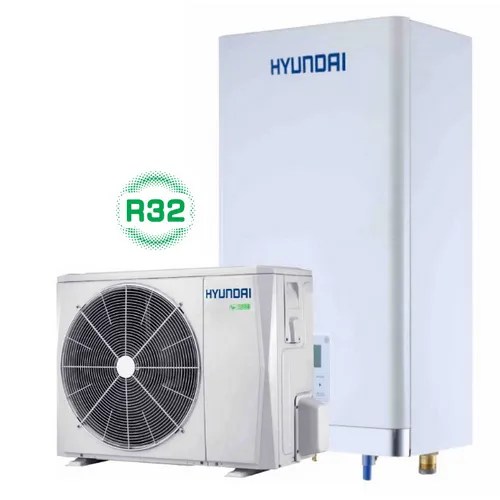

Air-to-water heat pump HYUNDAI R32 split 14kW 380V is an advanced air conditioning system, designed to provide efficient heating and cooling solutions for residential spaces. Using R32 refrigerant, this model stands out for its energy performance and reduced environmental impact.
| TECHNICAL SPECIFICATIONS | |
| Heating (A7/W35) | 14.5 kW |
| Absorbed electrical power (A7/W35) | 3,09 kW |
| – COP (A7/W35) | 4,7 |
| Heating (A7/W45) | 14.2 kW |
| – Absorbed electrical power (A7/W45) | 3,89 kW |
| – COP (A7/W45) | 3,65 |
| Heating (A7/W55) | 13.8 kW |
| – Absorbed electrical power (A7/W55) | 4,6 kW |
| – COP (A7/W55) | 3 |
| Cooling (A35/W18) | 13.5 kW |
| – Absorbed electrical power (A35/W18) | 3,75 kW |
| – EER (A35/W18) | 3,6 |
| Cooling (A35/W7) | 12.7 kW |
| – Absorbed electrical power (A35/W7) | 4,89 kW |
| – EER (A35/W7) | 2,55 |
| Seasonal efficiency class LWT 35C: | A+++ |
| Seasonal efficiency class LWT 55C: | A++ |
| Type | Trifazat |
| OUTDOOR UNIT | |
| Power supply | 380/50 V/Hz |
| Compressor | BLDC Inverter |
| Factory charge of R32 refrigerant | 1,84 kg |
| Sound power EN12102-1 | 65 dB/A |
| Outdoor temperature range - Cooling | -5~43 °C |
| Outdoor temperature range - Heating | -25~35 °C |
| Outdoor temperature range - Domestic Hot Water | -24~43 °C |
| Net weight of external unit | 112 kg |
| External unit dimensions (WxHxD) | 1118x865x523 mm |
| INTERNAL UNIT | |
| Power supply | 230/50 V/Hz |
| Circulation pump | inverter type |
| Maximum pressure | 9 mCA |
| Hydraulic connections | 1 ” |
| Electric resistance (back-up) | 3 kW |
| Beach water temperature - Cooling | 5~25 °C |
| Expansion vessel (Volume) | 8 l |
| Beach water temperature - Heating | 25~65 °C |
| Beach water temperature - Domestic Hot Water | 30~60 °C |
| Sound power EN12102-1 | 43 dB/A |
| Internal unit dimensions (WxHxD) | 420x790x270 mm |
| Net weight of the internal unit | 39 kg |
Benefits:
- Superior performance: High efficiency in terms of heating and cooling, ensuring a comfortable climate all year round.
- Ecological solution: The use of R32 refrigerant helps reduce environmental impact.
- Optimal comfort: The ability to maintain the desired temperature constantly and efficiently, both in summer and winter.
- Flexibility in installation: The split system allows the installation of the indoor unit in various locations, adapting to the specific needs of each home.
